Decorator Design Pattern
Decorator design pattern is used to add additional responsibilities to an object dynamically.
Intent
- Attach additional responsibilities to an object dynamically. Decorators provide a flexible alternative to subclassing for extending functionality.
The intent of decorator design pattern is to provide flexible alternative to subclassing by adding responsibilities to an object dynamically.
Problem
- Need to add additional functionality to object. Subclassing makes it inflexible and complex.
We may require to add some additional functionality to the object. This may be done by using inheritance but that will make it static and inflexible and client will not be able to add functionality as it is required.
Solution
- Give the responsibility of adding additional functionality to another object without using subclassing.
So additional functionality request will be forwarded to this object which will be responsible for adding the required functionality.
Where decorator design pattern is applicable?
- Adding additional responsibility to an object dynamically.
- To avoid subclassing for extending functionality.

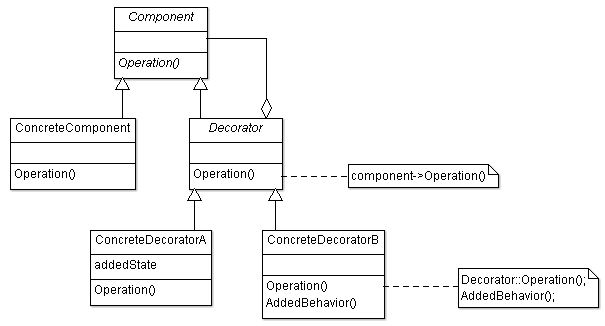

Decorator Design Pattern UML Structure
Participant classes of decorator design pattern
- Component class provides the interface to client for adding functionality dynamically.
- ConcreteComponent class represents the object where additional functionality will be added.
- Decorator class is derived from Component and has the responsibility for adding additional functionality. It has instance of class Component.
- The concrete classes ConcreteDecoratorA and ConcreteDecoratorB are used for adding functionality to the Component object.
How they work together?
- Decorator does the Operation on ConcreteComponent as it has instance of class Component. Extra functionality will be added by method Operation() of ConcreteDecoratorA and ConcreteDecoratorB.
- This looks better than the subclassing, functionalities are added dynamically and provide more flexibility. But this increases the number of objects as the functionality increases and will make it difficult to manage. So inheritance may work better if we have very less number of functionality or functionality need not require to be added dynamically.
Decorator Design Pattern Example
Here is the decorator factory design pattern example.
There is an IDE (Integrated Development Environment). Provide additional features generating UML diagrams and reading executable dynamically.
Implementation Code
| C++ | Decorator Pattern in C++ | Decorator Pattern C++ Example |
| C# | Decorator Pattern in C# | Decorator Pattern C# Example |
| Java | Decorator Pattern in Java | Decorator Pattern Java Example |
| Python | Decorator Pattern in Python | Decorator Pattern Python Example |
| JavaScript | Decorator Pattern in JavaScript | Decorator Pattern JavaScript Example |
| PHP | Decorator Pattern in PHP | Decorator Pattern PHP Example |
| Ruby | Decorator Pattern in Ruby | Decorator Pattern Ruby Example |
| Swift | Decorator Pattern in Swift | Decorator Pattern Swift Example |
| Objective-C | Decorator Pattern in Objective-C | Decorator Pattern Objective-C Example |
