Observer design pattern is used to notify all the objects to update themselves when an object state gets changed. This is also
known as Publish-Subscribe.
Define a one-to-many dependency between objects so that when one object changes state, all its dependents are notified
and updated automatically.
The intent of observer design pattern is to have the notification and update to all the objects when one changes its state.
Number of objects are dependent on another object and need to be notified for any changes to update themselves.
There may be dependency between different objects and they should be notified to update accordingly when one object changes
its state. There may be requirement of adding and deleting new objects too and for different events of state changes.
Give the responsibility of monitoring the state change of object to separate object which should notify to all
Where observer design pattern is applicable?
There is a one to many dependency between objects.
State change of one object requires changes in multiple objects.
Scenarios of Publish-Subscriber, Broadcasting.

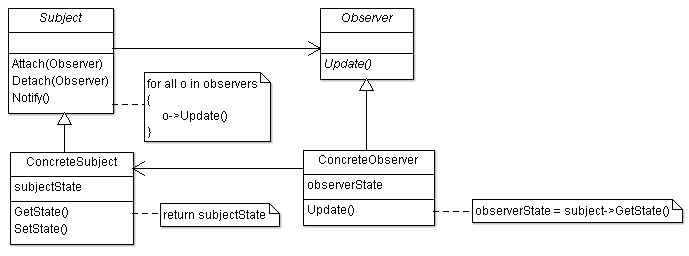

Observer Design Pattern UML Structure
Participant classes of observer design pattern
Subject class provides interface Attach() and Detach() for attaching and detaching observer. The observer
objects observe the subject.
ConcreteSubject class implements the method Attach() and Detach(). It keeps state information. It notifies to
observers for change of state and also provides method for getting the state information.
Observer class provides Update() interface for updating the Observers.
ConcreteObserver class implements the method Update() for updating the state. It has instance of class
ConcreteSubject which is used to get the state information of ConcreteSubject.
How they work together?
Observers are attached with ConcreteSubject. Whenever ConcreteSubject state gets changed, it uses Notify() method to
notify all the observers. It calls method Update() of all observers while notification. ConcreteObserver gets the state
information from ConcreteSubject using its instance and updates the applicable changes.
So you can see monitoring of state change of objects is given to Subject and it notifies to all observers for state
change. Observers get the subject state information and update themselves. It is easy to add and delete the observer and
also to make changes in subject as they do not affect each other. There are two ways to get the update information, one is
the push model where subject sends detail information to observer; and another one is pull model where subject sends
minimal information and observer gets the information from subject. Push model makes it less reusable and pull model is
not much efficient. As the requirement of observer, state changes and need of multiple subject grows, there can be
separate mechanism for update, and that responsibility can be given to separate object. The change of state in subject has
to be handled properly, as it proceeds to update of lot of observer objects.
Observer Design Pattern Example
Here is the observer design pattern example.
Multiple application uses the same database. If there is any problem in database or it is in maintenance mode then notify all the
application to have the alternative path to have data which is available in file.
